Hawke Cable Gland Installation Manual

5mm minimum recommended 6 2 1 6 3 2 1 4 1 2 5 6 accessories.

Hawke cable gland installation manual.

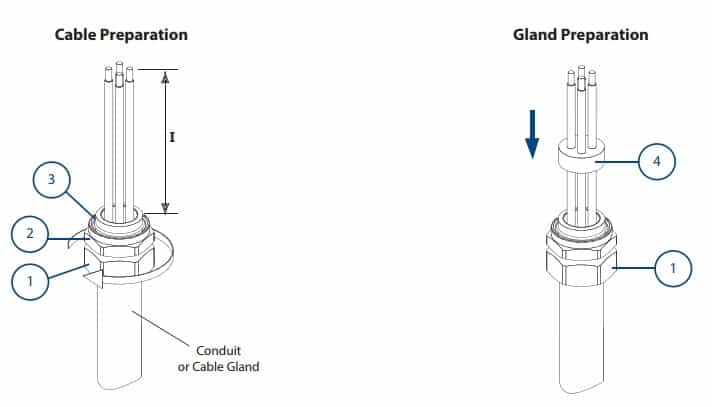

Before cable gland assembly or stripping of the cable gland assembly consideration should be given to any cable gland accessories that may be required such as. With over 60 years of experience manufacturing cable termination products for the most arduous environments and a reputation built off safety and reliability hawke. Gland preparation a strip cable to suit equipment as shown above and expose the armour braid i. Tape armour must be re trimmed at 90 to the vertical axis of.

Reversible armour clamping ring rac important. For remote installation please read all instructions carefully before beginning the installation installation instructions for cable gland type cx 1. Continue gland installation gland installation can now continue as per the gland assembly instructions. Installation instructions full installation guides are available for our full product range and these are included with product shipments.

Remove a further 18mm maximum 3. To download and store an electronic version of a particular instruction guide please use the links below. If m16 entry is used on o size cable glands the maximum cable inner sheath diameter is limited to 10 9mm. Braid x flat steel wire y steel tape z ring position swa position general identification ring orientation for.

Once compound is fully cured cores can be manipulated and system can be energised. The arrowhead indicating the correct armour thickness or type should point towards the equipment i note. The 501 453 universal cable gland is dual certified exe exd robust and for use with single wire armour w wire braid x steel tape armour z elastomer and plastic insulated cables. Discover our products including enclosures connectors and controls.

If required fit shroud b push the cable through the diaphragm seal armour spigot. Assembly of glands using 2122 can be completed prior to the compound reaching a fully cured state. Pre fitted cable guide can now be discarded. For particular use with cables that exhibit cold flow characteristics.

I 20mm for cable gland sizes os to c i 25mm for cable gland sizes c2 to f ii to suit equipment. If required fit shroud over the cable outer sheath prepare the cable by removing the cable outer sheath and the armour to suit the geometry of the equipment. Hawke cable glands all hawke international cable glands meet and in most cases exceed the test requirements for products used in potentially hazardous areas. Gland assembly see graphs.
