The national electric code has another definition for damp locations that is more subjective but if you think the receptacle is going to get wet use an in use. The purpose statement of the nec section 90 1 a states the purpose of this code is the practical safeguarding of persons and property from hazards arising from the use of electricity in other words it all comes back to protecting people and property from the inherent hazards of using electricity. Grounding with conduit.

fiberglass entry doors in stock hampton bay 24 inch ceiling fan fence infill panels melbourne halyard lavender nitrile gloves 52818 hand washing posters for childcare australia fire pit water feature pool fire magic grills toronto hard floor mattress

250 148 Continuity And Attachment Of Equipment Grounding Conductors To Boxes

250 148 Continuity Of Equipment Grounding Conductors And Attachment In Boxes

Code Q A Attachment Of Equipment Grounding Conductor To Box Ec M

Stumped By The Code October 2010 Ec M

2008 Nec Changes Test 17

Code Q A Ec M

Wiring in pvc conduit must have at least 18 inches of cover.

Grounding metal boxes nec code.

Backfill surrounding conduit or cables must be smooth granular material without rocks. In this way the metal raceway acts in place of the grounding wire that is found in nm cable this is also the main reason why only metal boxes may be used with metal conduit. We also see hesitation when people are instructed to bond their gas pipes to the grounding and lightning systems nec 250 104 b 250 52 b 1 and nfpa 54 section 7 13 as well. Lightning systems must be bonded per nec 250 106 250 4 a 1 250 4 b 1 and nfpa 780 section 4 14.

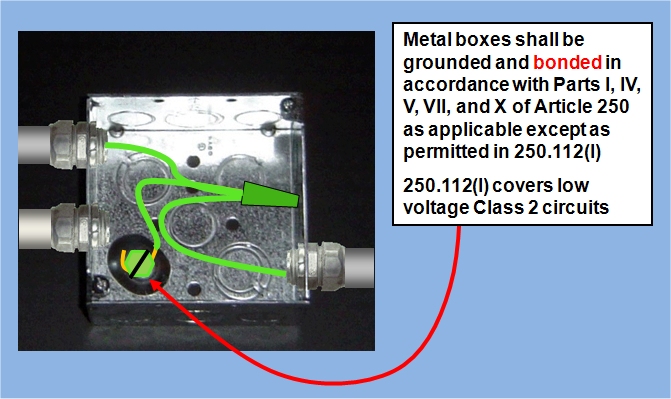

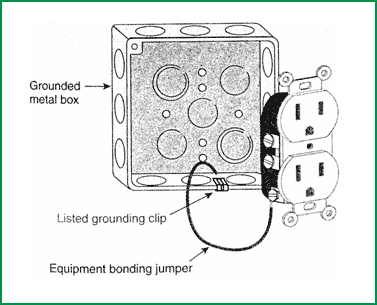

This refers to the metal race ways metal cables boxes panelboards nipples transformers. Where circuit conductors are spliced within a box or terminated on equipment within or supported by a box any equipment grounding conductor s associated with those circuit conductors shall be connected within the box or to the box with devices suitable for the use in accordance with 250 148 a. 250 148 continuity and attachment of equipment grounding conductors to boxes. The national electrical code defines a wet location as an area that is subject to saturation with water or other liquids and unprotected locations exposed to the weather.

This is directly evident when we take a look at the grounding and bonding requirements. In some installations using metal conduit the raceway the conduit boxes and connectors serve as the ground for the circuit. The circuit equipment grounding conductor for an isolated ground receptacle installed in accordance with 250 146 d isn t required to terminate to a metal box. It s not unusual for adjacent towns to have very different codes.

Local building departments often modify the nec and you must satisfy those local codes. Equipment grounding conductors must be spliced together with a device listed for the purpose 110 14 b and 250 148 a. Wiring buried inside rigid metal rmc or intermediate metal imc conduit must have at least 6 inches of earth cover. Nec 250 4 a 3 states that normally non current carrying conductive materials enclosing electrical conductors or equipment or forming part of such equipment shall be connected together and to the electrical supply source in a manner that establishes an effective ground fault current path.

For instance one may allow plastic boxes while another requires metal boxes. Have a local inspector approve your wiring plans before you begin work. National electrical codes nec 250 5 grounding and bonding grounding and bonding electrodes include a metal underground water pipe in direct contact with earth for 10 feet or more a metal frame of a building or structure a concrete encased electrode or a ground ring nec 250 28 grounding and bonding grounding and bonding a main bonding jumper or the green bonding screw provided by the panel.
